quick & hi-pressure coupling

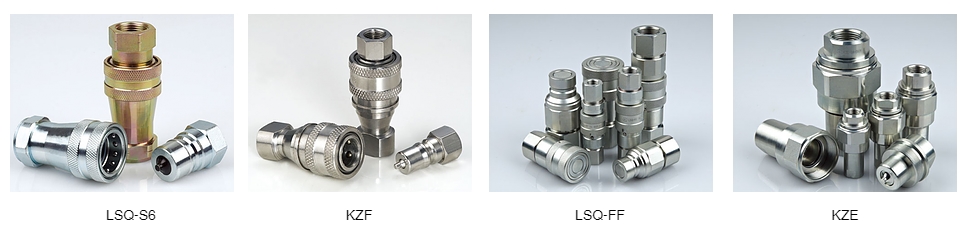

ตัวแทนจำหน่าย ข้อต่อสวมเร็ว (Quick Coupling) ยี่ห้อ FIT, Superlok แบบ Stainless Steel Carbon Steel และ Brass มาตรฐาน ISO 7241A, ISO 7241B, ISO 5675, ISO 16028

Application :

• Instrument Lines
• General Industry
• General Service
• Hydraulic
• Pneumatic

Features :

• Durable ball-locking mechanism assures reliable connection while distributing the load and providing alignment and swiveling action.
• Simple push-pull action to connect and disconnect lines-no tools required.
• Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.

Specifications :

• Maximum operating pressure up to 3,000 psi @ 70 F (21 ˚C)
• Operating temperature range – 10 F (- 23 ˚C) up to 400 F (204 ˚C)
• Durable ball-locking
• Simple push-pull action to connect and disconnect line – no tools required
• Plug and body are available valve or unvalved.
• Valves automatically open when connected and shut off when disconnected
• Port size 1/8 " to 1/2 " for NPT thread
• Tube connector OD. 6 mm. to OD. 12 mm.
• Material Stainless Steel 316
