Return Line Filter



Return Line Filter : MP Filtri



ตัวแทนจำหน่าย Return Line Filter ไส้กรองน้ำมัน ไส้กรองขากลับ(In-Line, Tank Top) สินค้าคุณภาพสูงยี่ห้อ MP Filtri



MPFX - MPF

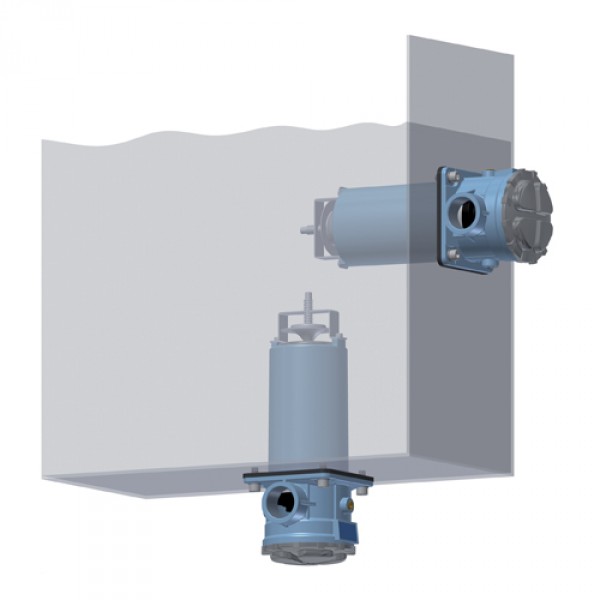

Tank mounted return filter, with oil flow external to internal filtering element. Working pressure 8 bar (116 psi), flow rates up to 750 l/min (198 fpm), threaded connections from 1/2” to 2” BSP/NPT/SAE and flanged connections up to 2” SAE 3000 PSI.



MPH - MPI

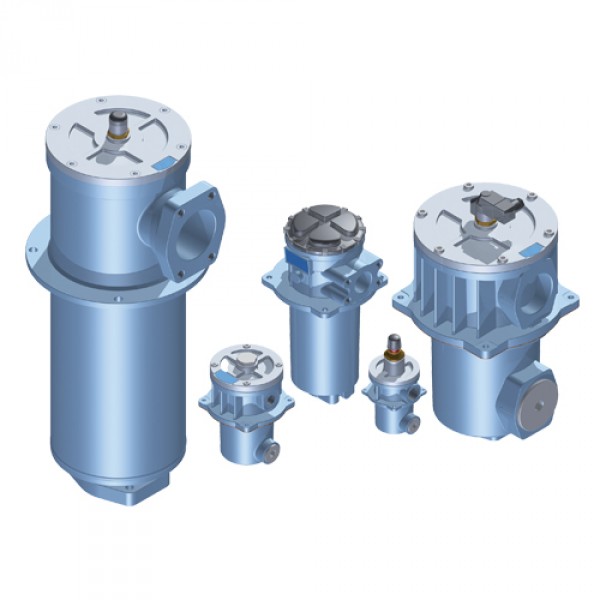

Tank mounted return filter with oil flow internal to external filtering element. Working pressure 10 bar (145 psi), flow rates up to 3000 l/min (792 gpm), threaded connections from 3/4” to 1 1/2” BSP/NPT/SAE and flanged connections up to 4" SAE 3000 PSI and DN 100 PN 10/16 UNI 2223.



FRI

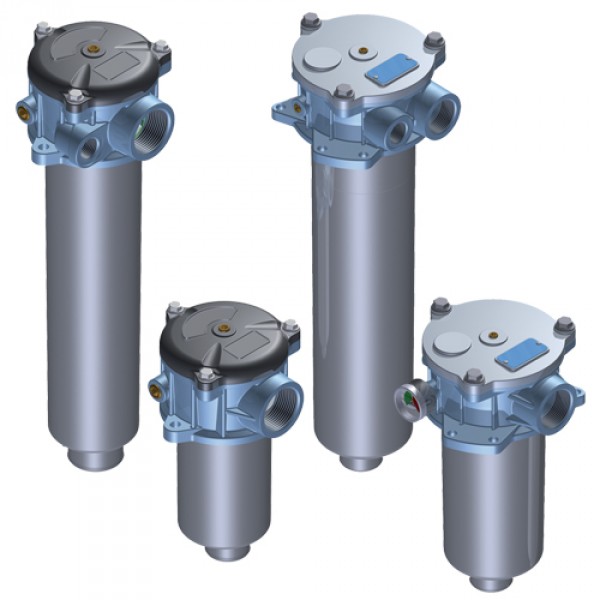

In-line or tank mounted return filter with oil flow external to internal filtering element. Working pressure 20 bar (290 psi), flow rates up to 1500 l/min (397 gpm), threaded connections from 1/2” to 2 1/2” BSP/NPT/SAE and flanged connections up to 3 1/2” SAE 3000 PSI.



RF2

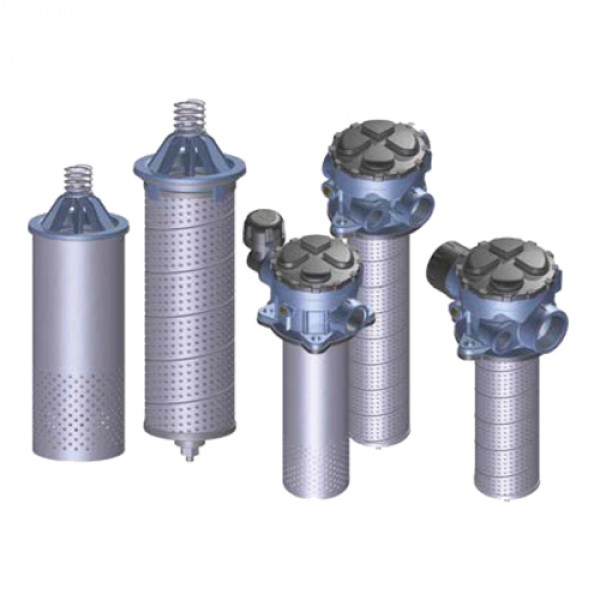

Semi-submerged return filter, working pressure 20 bar (290 psi), flow rates up to 350 l/min (92 gpm), threaded connection up to 1 1/2” BSP/NPT/SAE and flanged connections up to 1 1/2” SAE 3000 PSI.
