Pressure Line Filter



Pressure Line Filter: MP Filtri



ตัวแทนจำหน่ายไส้กรองน้ำมันไฮดรอลิคด้านความดันแรงดันสูง (High Pressure Filter) ยี่ห้อ MP Filtri จากประเทศอิตาลี



FMP039

In-line filter, working pressure 110 bar (1595 psi), flow rates up to 80 l/min (21 gpm), threaded connections 1/2” BSP/NPT/SAE.



FMP

In-line filter, working pressure 320 bar (4641 psi), flow rates up to 475 l/min (126 gpm), threaded connections up to 1 1/2” BSP/NPT/SAE and flanged connections up to 1 1/2” SAE 3000 PSI.



FHP

In-line filter, working pressure 420 bar (6091 psi), flow rates up to 750 l/min (198 gpm), threaded connections up to 1 1/2” BSP/NPT/SAE and flanged connections up to 2" SAE 6000 PSI.



FMM 050 - FHA 051

In-line filter, working pressure FMM 050 - 420 bar (6091 psi) and FHA 051 - 560 bar (8122 psi), flow rates up tp 152 l/min (40 gpm), threaded connections up to 3/4” BSP/NPT/SAE/ISO 6149.



FHM - MANIFOLD

Manifold mounted filter, working pressure 320 bar (4641 psi), flow rates up to 450 l/min (119 gpm), manifold connections.



FHB - MANIFOLD

Side manifold mounted filter, working pressure 320 bar (4641 psi), flow rates up to 485 l/min (128 gpm), side manifold connections.



FHF 325 - MANIFOLD

In-line filter, working pressure 350 bar (5076 psi), flow rates up to 500 l/min (133 gpm), threaded connections 1 1/2” BSP/NPT/SAE and flanged connections 1 1/2” SAE 6000 PSI manifold type. Filter housing according to SAE J2066 for HF4 filter elements.

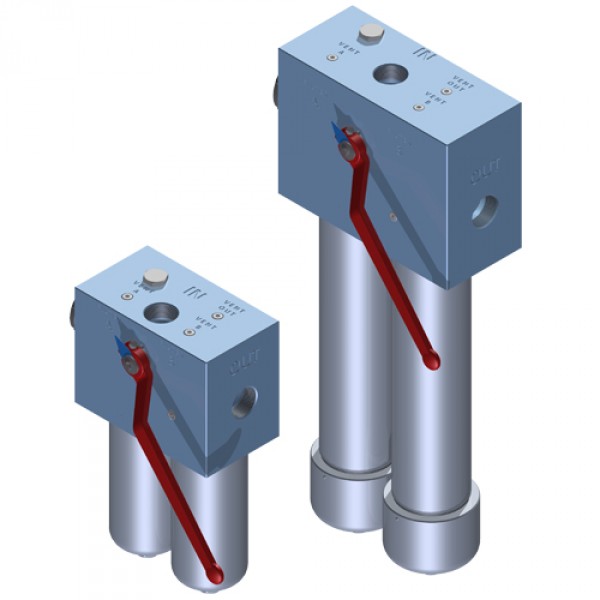

FHD - DUPLEX

In-line duplex filter, working pressure 350 bar (5076 psi), flow rates up to 345 l/min (92 gpm), threaded connections from 1/2” to 1 1/4” BSP/NPT/SAE and flanged connections 1 1/2” SAE 6000 PSI.
